Orion R10 / settings - which motor etc.

[cornishboy176]

Originally Posted by andys

In my Durango 210 - with an Orion 7.5 motor, what settings would be good for the boost stuff, to simply get a bit more speed when on the straight ?

I promise you,you wont need it,it will be like a missile down the straight as it is,

The turbo settings are mainly for the stock classes etc etc

[Gayo]

Originally Posted by andys

with an Orion 7.5 motor, what settings would be good for the boost stuff, to simply get a bit more speed when on the straight ?

If you need more overall power, add boost. If you need only top end for the straights, add some turbo.
When using boost/turbo, you need to use a slightly shorter ratio (smaller pinion) even if you are looking for more top end.

[andys]

Anyone have / know of a link to - pictures of an R10 install in a Durango 210 - looks tight and can't decide best place to put it !

[cornishboy176]

Here you go,take a look,fits nicely

[andys]

Cheers fella.

I noticed you have removed a bit of the sidepod material for the switch - I was thinking of doing the same

Did you have to remove any plastic for the capacitors - mine don't quite fit flat on as you have them ?

[cornishboy176]

I haven't cut anything away for the capacitor it fits nice and tight,I only cut away for the switch

[jayst]

ive put the switch ontop of the capaciter

[hotrodchris]

Mines similar except i have the speedo right at the back and the cap fits in front nicely!

[cornishboy176]

Originally Posted by hotrodchris

Mines similar except i have the speedo right at the back and the cap fits in front nicely!

It all fits quite nicely actually

[andys]

Got it in, but can't help thinking I should have put it on the other side and trailed the wires across !

[andys]

After reading LOTS of Orion R10 posts, I still don't know what some of the settings mean, or how to use them. Can someone please explain these in simple English



9: Boost Timing
10: Turbo Slope
11: Overheat Protection (ok I understand this one !!!!)
12: Turbo Timing
14: Turbo Delay

[cornishboy176]

Originally Posted by andys

After reading LOTS of Orion R10 posts, I still don't know what some of the settings mean, or how to use them. Can someone please explain these in simple English



9: Boost Timing
10: Turbo Slope
11: Overheat Protection (ok I understand this one !!!!)
12: Turbo Timing
14: Turbo Delay

try this but like i said these settings are more for the stock classes:

http://www.youtube.com/watch?v=MyvuFPhm9j8

[RogerM]

Not necessarily ... I uses lots of turbo adjustments (in combination with reduced boost adjustments) to help shape the torque curve with motors upto 5.5

[andys]

Originally Posted by cornishboy176

try this but like i said these settings are more for the stock classes:

http://www.youtube.com/watch?v=MyvuFPhm9j8

Yep, I've watched that video, but he skims over the settings and does a bad job of explaining the ones he does mention !

I'm still unsure of what I'd change to get normal service in the infield and the extra timing kick in on the straight... Is this the 'turbo' or the 'boost' I need to change - and why ?

[MarkLeeds]

Originally Posted by andys

After reading LOTS of Orion R10 posts, I still don't know what some of the settings mean, or how to use them. Can someone please explain these in simple English



9: Boost Timing
10: Turbo Slope
11: Overheat Protection (ok I understand this one !!!!)
12: Turbo Timing
14: Turbo Delay

I had the same problem so emailed team Orion and below us what they had to say.
Hi,
*
Yes it is a little complicated but it’s what you need to have today to have a top performance ESC.
*
So the Boost Timing is the timing that is always applied, it’s the same as adding timing mechanically on the motor. All motors have some timing built inside them even if the notch on the motor says 0°. Usually motors have 15° or more built-in and some manufacturers cheat with this and put 30° or more so that you think the motor is super fast but in fact it’s already at max timing when you buy it… That’s why we set it a 0° so that we are sure you don’t burn your motors if they have crazy timings built into them already.
*
Turbo timing is extra timing that is added when at full throttle, it will give extra performance down the straight, etc.
*
Turbo slope rate sets how turbo timing is applied, basically x degrees of timing added every 0.1 second the ESC is at full throttle.
*
Turbo delay sets after how much time at full throttle before Turbo timing starts to be applied (at the rate defined by the turbo slope rate).
*
Makes it a bit clearer, for me anyway

[andys]

Originally Posted by MarkLeeds

I had the same problem so emailed team Orion and below us what they had to say.
Hi,
*
Yes it is a little complicated but it’s what you need to have today to have a top performance ESC.
*
So the Boost Timing is the timing that is always applied, it’s the same as adding timing mechanically on the motor. All motors have some timing built inside them even if the notch on the motor says 0°. Usually motors have 15° or more built-in and some manufacturers cheat with this and put 30° or more so that you think the motor is super fast but in fact it’s already at max timing when you buy it… That’s why we set it a 0° so that we are sure you don’t burn your motors if they have crazy timings built into them already.
*
Turbo timing is extra timing that is added when at full throttle, it will give extra performance down the straight, etc.
*
Turbo slope rate sets how turbo timing is applied, basically x degrees of timing added every 0.1 second the ESC is at full throttle.
*
Turbo delay sets after how much time at full throttle before Turbo timing starts to be applied (at the rate defined by the turbo slope rate).
*
Makes it a bit clearer, for me anyway

Thankyou so much
Makes perfect sense - happy days

[jayst]

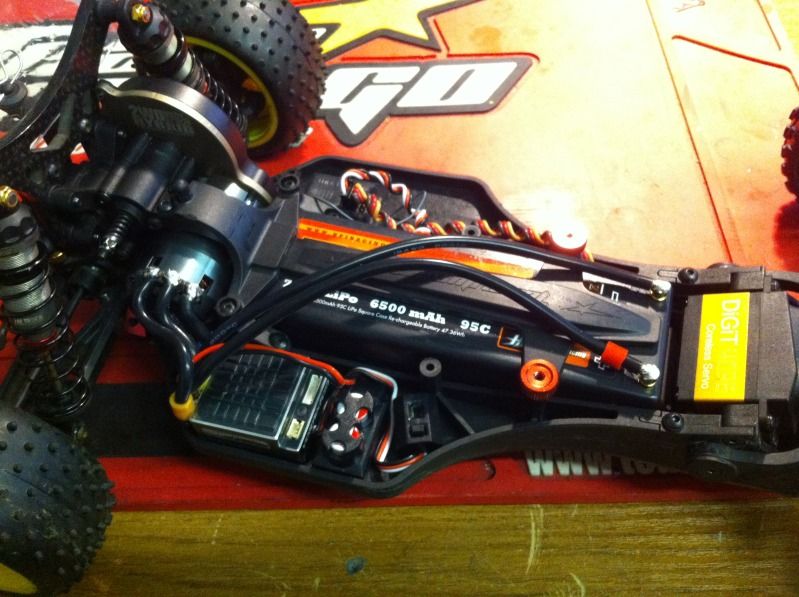

my installs .
