Default CAT SX Wiring

Hi Guys

Ive just finished building a new CAT SX for one of the lads at the club.

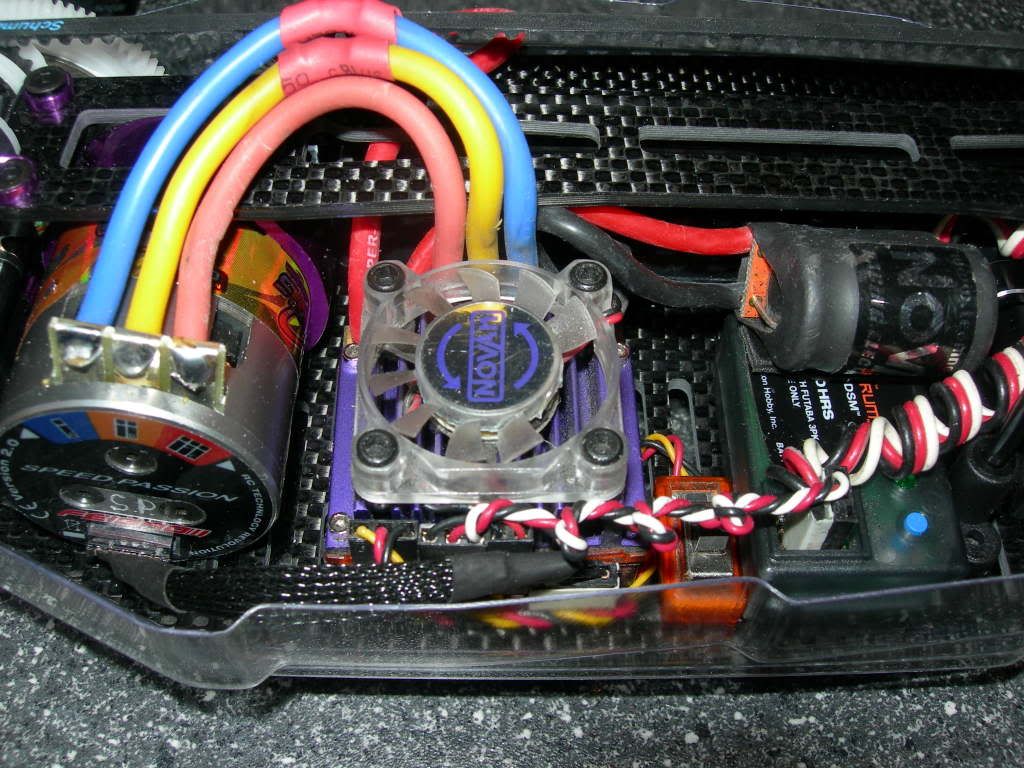

I thought id share the pics of the wiring layout in case it helps anyone else.

Excuse the extended speedo wires and damaged fan, its a second hand speedo i was given ...............

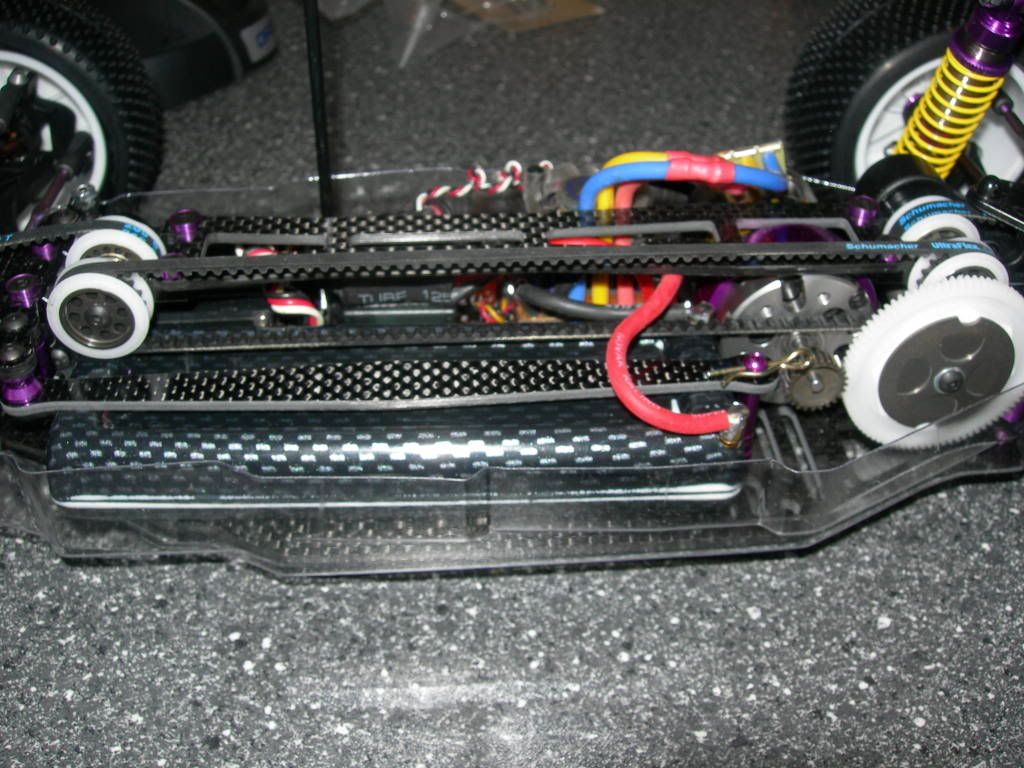

Seems to me like this is the best way to avoid the battery wires getting tangled in the belt.

Keep wires short as is possible, plug in the negative first and then slide the pack into place ....



Cable tie the positive cable to the top deck using the two pre drilled holes



Orion 3200 pack fits well





Positive cable sits well clear of the belt .................



__________________
Richard Drury

See My Feedback

Reply With Quote
  #2
Old 18-10-2008
ben's Avatar
ben ben is offline
Smirnoff Ice dancer

Join Date: Jul 2006
Location: York
Posts: 5,505
Blog Entries: 2
Send a message via MSN to ben
Default

Looks very good Rich!! Ive done the same with the posotive connector so it stays well clear of the belt

Ben
__________________
Schumacher Racing - Reedy - Schelle - TKR - Bandicoot Bodies - MIP - Nextlevelrc - Trishbits - Moss Models
Reply With Quote
  #3
Old 18-10-2008
glypo's Avatar
glypo glypo is offline
Senior Member

Join Date: Nov 2005
Location: Surrey, England
Posts: 589
Default

Nice photos.

Looks like Chris guide to the TrakPower posted a month ago: (minus the cable tie position, I do the same as you and use the holes in the top deck for cable tie)

http://www.oople.com/forums/showpost...1&postcount=86
__________________
Jason Moller
Reply With Quote
  #4
Old 18-10-2008
Rich D's Avatar
Rich D Rich D is offline
*SuPeRsTaR mEmBeR*

Join Date: Apr 2008
Location: Lincolnshire
Posts: 2,449
Default

Cheers fellas
__________________
Richard Drury

See My Feedback

Reply With Quote
  #5
Old 18-10-2008
PaulUpton PaulUpton is offline
Mad Member

Join Date: Jul 2008
Location: Northampton
Posts: 1,297
Default

exactly the same as i did!!
__________________
PR Racing - Insideline Racing - Zen Racing - GForce - PureRC - Puppy Paint
Reply With Quote
  #6
Old 02-11-2008
Oliv996's Avatar
Oliv996 Oliv996 is offline
Member

Join Date: Dec 2005
Location: Paris - France
Posts: 246
Default

Here is my wiring based on a Tekin RS Pro ESC. I tried to put wires coming from LiPo in such a place they definitively can't touch the drive belt. The Tekin RS is really convenient to make a net wiring with its soldering posts. I think it's the first time I used so little wire length to make the total wiring







The "+" wire is trapped between top deck and motor mount, so impossible to escape !
__________________
http://www.mid44.com/
Reply With Quote
  #7
Old 02-11-2008
ThePromise's Avatar
ThePromise ThePromise is offline
Member

Join Date: Jun 2007
Posts: 40
Send a message via ICQ to ThePromise
Default NimH version?

Hello,

could anyone show a wired NimH version of the SX?

Thanks,
Chris
__________________
www.rc-car-setup.com
Team CS-Electronic/Schumacher
Team LRP Electronics
Reply With Quote
