  #1
Old 03-10-2012
madmax's Avatar
madmax madmax is offline
Senior Member

Join Date: Jan 2009
Posts: 637
Default another mid motor

New mid motor

i am currentley building my own mid motor car to run this winter and next year, i will have some pics up soon of the converson.

a little hint it has a ansmann 2x front end.
__________________
Answer RC team driver
Formby models
HB Racing D216
HB Racing D418
www.kandmacoustics.co.uk
Reply With Quote
  #2
Old 03-10-2012
madmax's Avatar
madmax madmax is offline
Senior Member

Join Date: Jan 2009
Posts: 637
Default

here are some pics of what i have created so far
Attached Images
File Type: jpg photo7-1.jpg (81.0 KB, 476 views)
File Type: jpg photo6.jpg (96.1 KB, 542 views)
File Type: jpg photo5-1.jpg (100.6 KB, 559 views)
__________________
Answer RC team driver
Formby models
HB Racing D216
HB Racing D418
www.kandmacoustics.co.uk
Reply With Quote
  #3
Old 03-10-2012
Timee80 Timee80 is offline
Senior Member

Join Date: Oct 2008
Location: worksop
Posts: 837
Send a message via Skype™ to Timee80
Default

looks interesting. Keep updating this thread with feedback mate
Reply With Quote
  #4
Old 04-10-2012
coleman758 coleman758 is offline
Banned

Join Date: Feb 2011
Location: In a model shop spending more money!
Posts: 2,148
Default

DEX2C?
Reply With Quote
  #5
Old 04-10-2012
Benh's Avatar
Benh Benh is offline
Senior Member

Join Date: Apr 2007
Posts: 841
Default

Saturday, 10pm, Keith Allen is racing it live on Channel 4.
__________________
www.brca-eoe.co.uk
Reply With Quote
  #6
Old 04-10-2012
GRIFF55 GRIFF55 is offline
Spends too long on oOple ...

Join Date: Feb 2007
Location: Sunny South West Wales
Posts: 4,875
Default

What programme is that on?
__________________
~ICON-RC~ATOMIC CARBON~LMR~TONISPORT~NUCLEAR RC~
Reply With Quote
  #7
Old 04-10-2012
Dandare's Avatar
Dandare Dandare is offline
Senior Member

Join Date: Dec 2010
Location: Suffolk
Posts: 914
Default

Quote:
Originally Posted by GRIFF55 View Post
What programme is that on?
The Million Pound Drop Live apparantly
__________________
TLR 22 3.0/3300kv brushless Lunchbox/Helion 2wd sct/Dromida MT4.18/Orlandoo F-150/Mardave Cobra/Re-re Cat xls w/uprated tranny/Re-re Top Force/Carisma GT24R


http://www.norfolkbuggyclub.moonfruit.com/
Reply With Quote
  #8
Old 07-10-2012
madmax's Avatar
madmax madmax is offline
Senior Member

Join Date: Jan 2009
Posts: 637
Default

I'll put my post back on track. I gave the car a run today at croston raceway and found the car very stable on power and a little twitchy off power. It was fun to drive. Looking forward to some more testing at southports indoor astro track next Sunday.
__________________
Answer RC team driver
Formby models
HB Racing D216
HB Racing D418
www.kandmacoustics.co.uk
Reply With Quote
  #9
Old 13-10-2012
madmax's Avatar
madmax madmax is offline
Senior Member

Join Date: Jan 2009
Posts: 637
Default

I will be running the car hopfully this sunday at southports new indoor astro track. ive made some slight changes to the car so i will be doing some more testing. but one of the nicest things i have found is that it dousnt twitch under hard acceleration,
__________________
Answer RC team driver
Formby models
HB Racing D216
HB Racing D418
www.kandmacoustics.co.uk
Reply With Quote
  #10
Old 14-10-2012
madmax's Avatar
madmax madmax is offline
Senior Member

Join Date: Jan 2009
Posts: 637
Default

I Ran the car today thanks to simon from southport lending me a lipo as mine havnt arrived as of yet.

southports track was an amazing astro turf track with carpeted jumps and very good lighting.

with the help of Carl Latham, and Damian Whittle, we got the car running happily and with a very good pace.
Round 1
i found the car pushing at slow speeds in the corners but the drive out the corner and down the strait was very impressive.
15 laps was done top lads where doing 17
Round 2
we sofend the front end, and raised the front links.
we got some more steering but still not enough, we also found that under acceliation the back of the car raises,
16 laps was done top lads where doing 17
Round 3
the back of the car was lowerd so the car sits nose high, the front links shortend and washers removed.
the car drove alot better but had a slight pendulm motion going on power and off power steering improved a little more.
16 laps done top lads where doing 18
Round 4
we found that the car wasnt getting full lock so a longer servo horn was fitted, this helped alot more in the corners i also lowerd the front steering hubs aswell.
the car is now running alot better and found the car very stable and could attack the high speed corners.
17 laps done top lads doing 18
Round 5
I removed the weight in the rear of the car this made it alot more adjile and seemed to solve the low speed corners.
Finals
I qualified 8th in the B Final and finnished 3rd,

over all with the help of Carl and Damian the car went from strenth to strenth

next outing will be at Chadderton as long as my stubby lipos arive.
__________________
Answer RC team driver
Formby models
HB Racing D216
HB Racing D418
www.kandmacoustics.co.uk
Reply With Quote
  #11
Old 14-10-2012
bigred5765's Avatar
bigred5765 bigred5765 is offline
Lion-O - King of the Thundercats

Join Date: Mar 2006
Location: chorley
Posts: 8,474
Send a message via MSN to bigred5765 Send a message via Skype™ to bigred5765
Default

looked really good towards the end of the day lee, think the gap between lipo and drive shaft made me feel better lol
__________________
Mattys the driver,my names carl
Reply With Quote
  #12
Old 19-11-2012
madmax's Avatar
madmax madmax is offline
Senior Member

Join Date: Jan 2009
Posts: 637
Default

Here is a bit of an update,

with the help of the two Tony's (Costello and Parr) i have modified a C4.1 chassis to accept the 410 rear end.

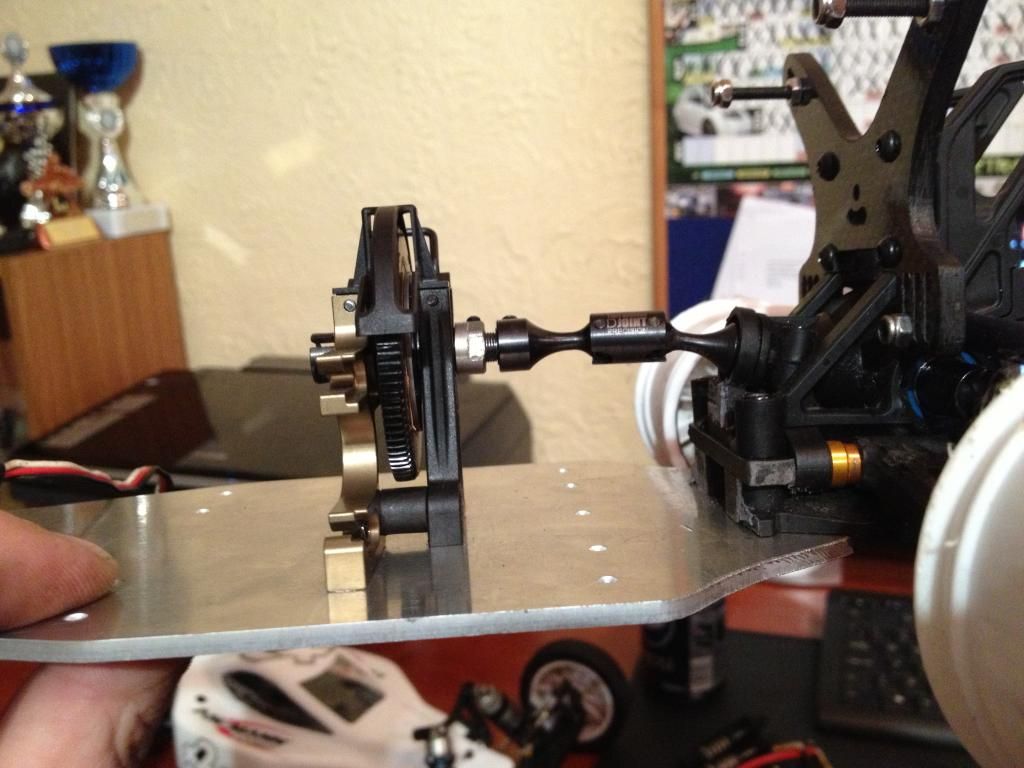

we have then made a shortend drive shaft so a stubbl lipo fits between the gearbox and lipo, this also puts the lipo more setral to help with weight ballance.





__________________
Answer RC team driver
Formby models
HB Racing D216
HB Racing D418
www.kandmacoustics.co.uk
Reply With Quote
  #13
Old 04-12-2012
coleman758 coleman758 is offline
Banned

Join Date: Feb 2011
Location: In a model shop spending more money!
Posts: 2,148
Default

Anymore Updates Lee?
Reply With Quote
  #14
Old 04-12-2012
buggy#0's Avatar
buggy#0 buggy#0 is offline
Senior Member

Join Date: Oct 2012
Location: Liverpool
Posts: 340
Default

I saw this car at turf wars on Sunday. I was keen to find out more on it, then I found it on here! That drive shaft was VERY close to the lipo, I'm glad there haven't been any issues. It looks fantastic, its the first homemade car I've ever seen race. Goes well on track
Reply With Quote
  #15
Old 05-12-2012
madmax's Avatar
madmax madmax is offline
Senior Member

Join Date: Jan 2009
Posts: 637
Default

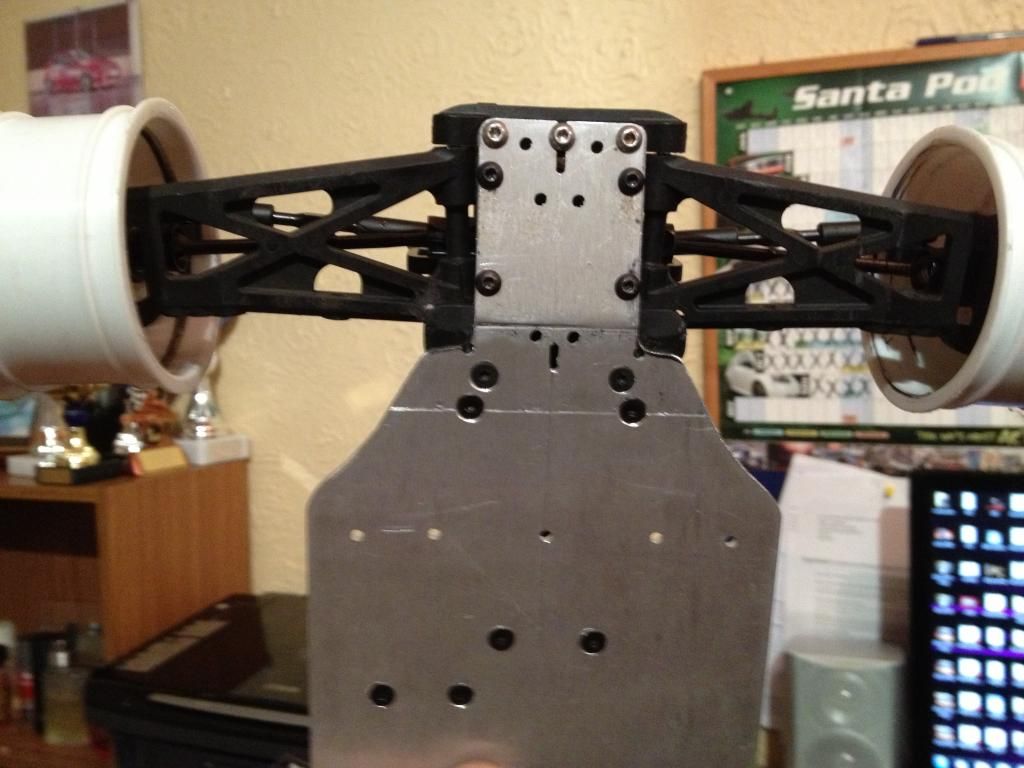

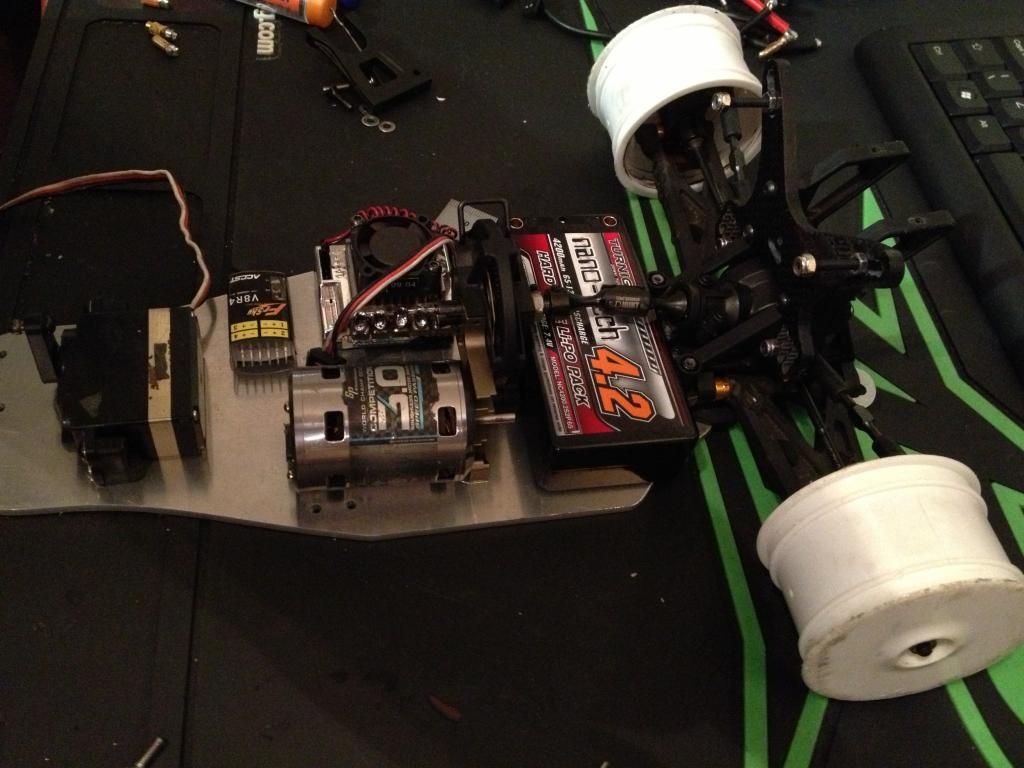

Here are the pics of the buggy as it stands, i have found the car very easy to drive and on power steering is exelent, the onl;y thing i need to work on now is the slight rotational twist while it is in the air when toy adjust thottle.

i have also 2 different chassis from tony parr from the c4.1 that he makes the std and +8. the +8 makes the car feel very stable and confident to push, and the std is great for those tight twisty trackswhere you need alot of steering. on a hole i thing this is a good car, i have a few more parts and mods to try and this will be done at chadderton this weekend.
roll on the slippy stuff.





__________________
Answer RC team driver
Formby models
HB Racing D216
HB Racing D418
www.kandmacoustics.co.uk
Reply With Quote
  #16
Old 07-12-2012
Bman Bman is offline
Member

Join Date: Jun 2012
Posts: 40
Default

I have been following this for a while now. Looks very good! I have been doing a fabrication myself. How much for the chassis and does he sell blank ones with no holes? What body do you run, any pics of the bottom chassis to body fitment? Any info would be great,thanks. Keep us posted...
