Default Tamiya 201 Option Rear 3.0 Alu Mounts

After reading this by Lee

Quote:
Originally Posted by pidge View Post

High - low - the rear block has a high and a low if you turn it upside down. so i run low - to give more antisqwat...

Quote:
Originally Posted by pidge View Post
i run spacer in the front and rear mount lower.

Can you guys look over my pics and tell me if this looks right ?

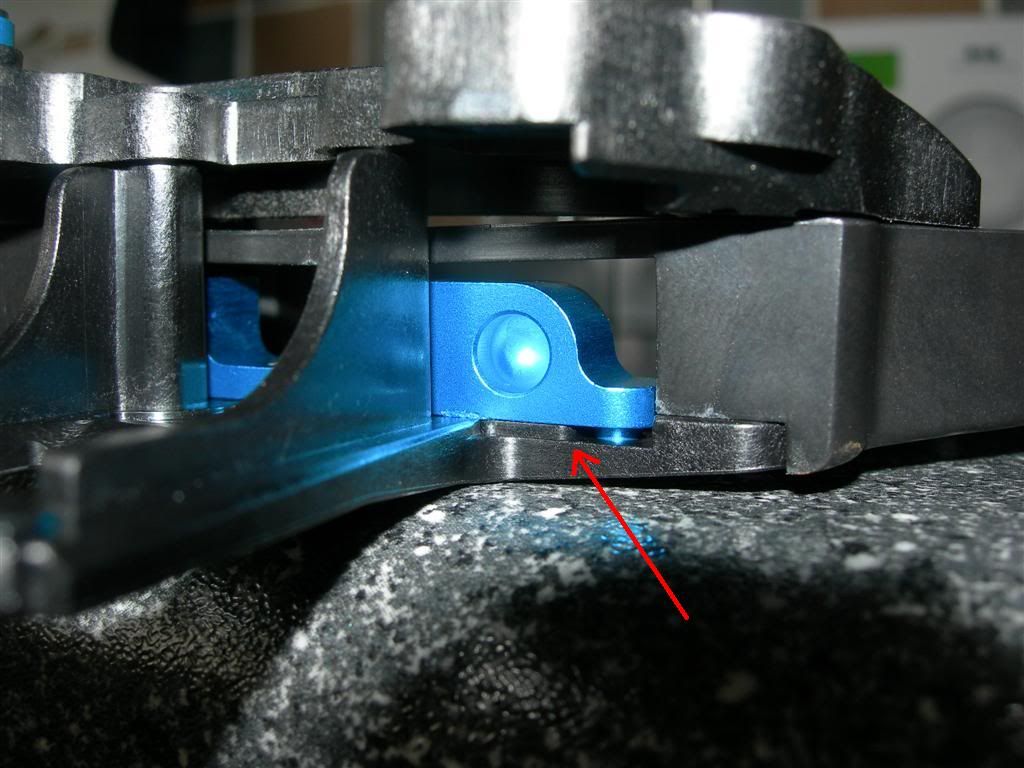

Note the kit plastic spacer pointed out and the way it lifts the locating pins out of the chassis. Just wanted to check that this is correct !

Cheers

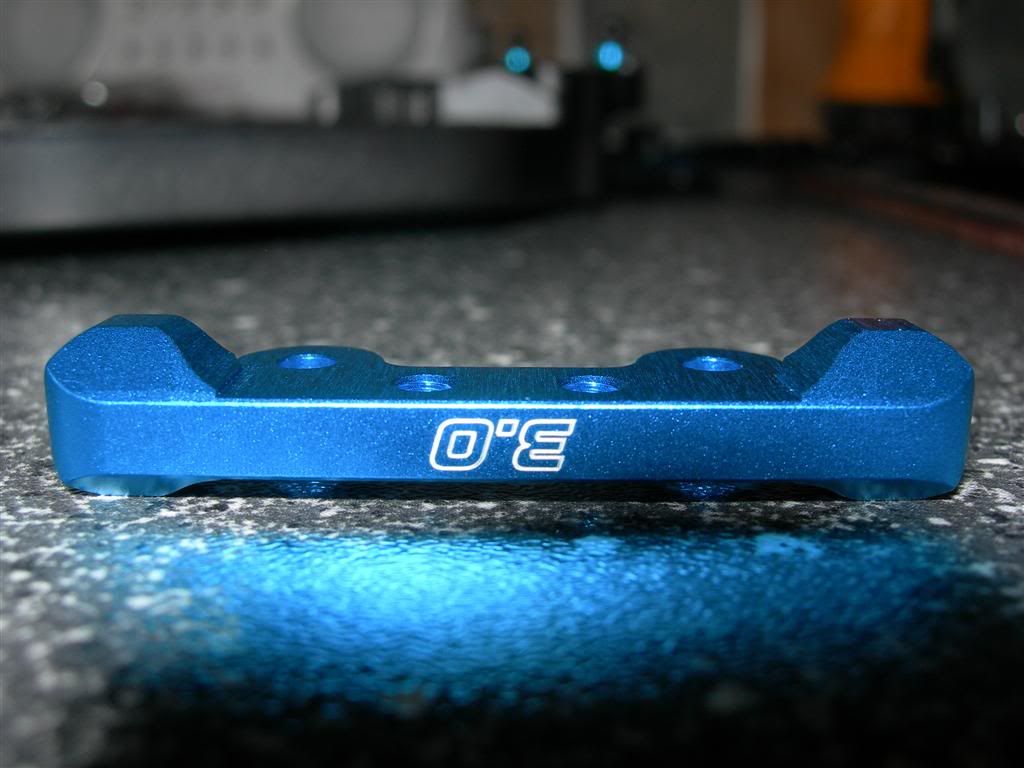

And also, im assuming that this means upside down - the writing upside down installed as pictured ?

__________________
Richard Drury

See My Feedback

Reply With Quote
  #2
Old 15-08-2010
tony6187's Avatar
tony6187 tony6187 is offline
Senior Member

Join Date: Jun 2007
Location: DUBLIN
Posts: 400
Default

THAT LOOKS RIGHT TO ME.THE LOCATING PINS WOULD HAVE TO BE SHORT ENOUGH SO THAT YOU COULD RUN THE BLOCK WITHOUT A SPACER AND NOT HAVE THEM PROTRUDING.WITH THE REAR BLOCK WHICH EVER POSITION PUTS THE HINGEPIN HOLES CLOSEST TO THE BOTTOM.HAVNT GOT MINE YET BUT GOING BY THE PICS AND LEES DESCROPTIONS THAT LOOKS RIGHT
Reply With Quote
  #3
Old 15-08-2010
Rich D's Avatar
Rich D Rich D is offline
*SuPeRsTaR mEmBeR*

Join Date: Apr 2008
Location: Lincolnshire
Posts: 2,449
Default

Cheers Tony - makes sense that
__________________
Richard Drury

See My Feedback

Reply With Quote
  #4
Old 15-08-2010
DCM's Avatar
DCM DCM is offline
Spends too long on oOple ...

Join Date: Oct 2005
Location: Marvelous South Wales!!
Posts: 8,896
Default

your rear one needs to be the other way, if you look at it, you will see, one way up the suspension ball locator is high, the other way, it is low.
