Electrics help for a newbie

[mazda_lad]

Hi there,

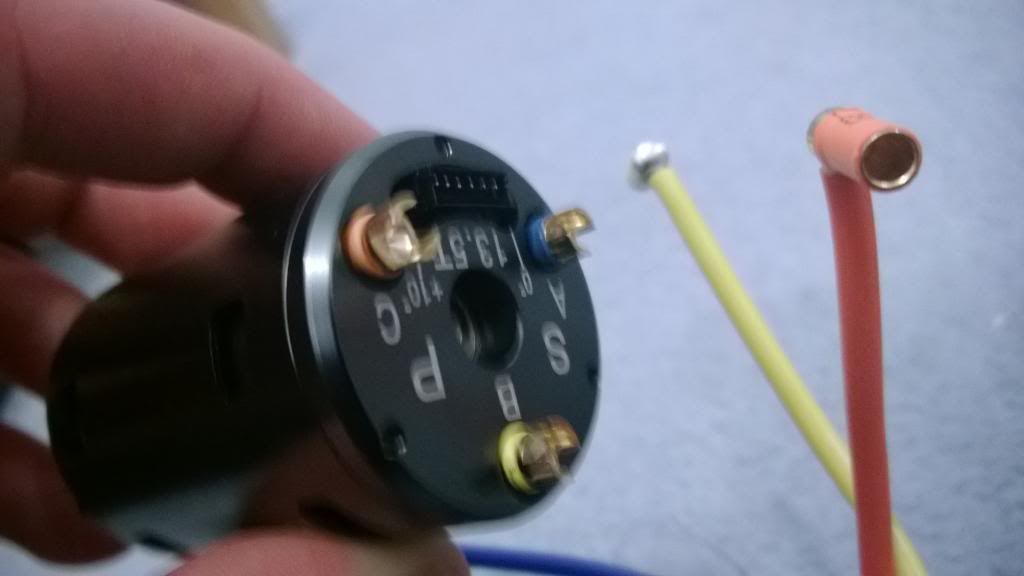

After some advice after buying a new brushless motor and speedo combo. When iv came to install them iv got lost about how to connect the speedo to the motor. Iv attached a picture of the connections and would like any info on how i can connect the two together.

Thanks in advance

[fidspeed]

just gently pull on the connector on the motor at pos A,B,and c they should pull off and look like the connector on the wire in the picture

look at the Speedo each wire will be named A,B C just plug into corresponding socket on motor

hope this helps dave

[Col]

Dave is correct. Your motor already has plugs installed, and you have plugs on the wires as well.
A bare motor looks like this:

[mazda_lad]

Many thanks for all the help guys. That info helps very much!

I will have a bash at the suggestions and post a comment on my progress.

Thanks again

[mazda_lad]

Many thanks for your help guys, Your info was bang on and very helpfull as iv managed to connect my motor and speedo combo. Ill be back to my local club very soon!
