Default s/p multi esc program card,which plugs

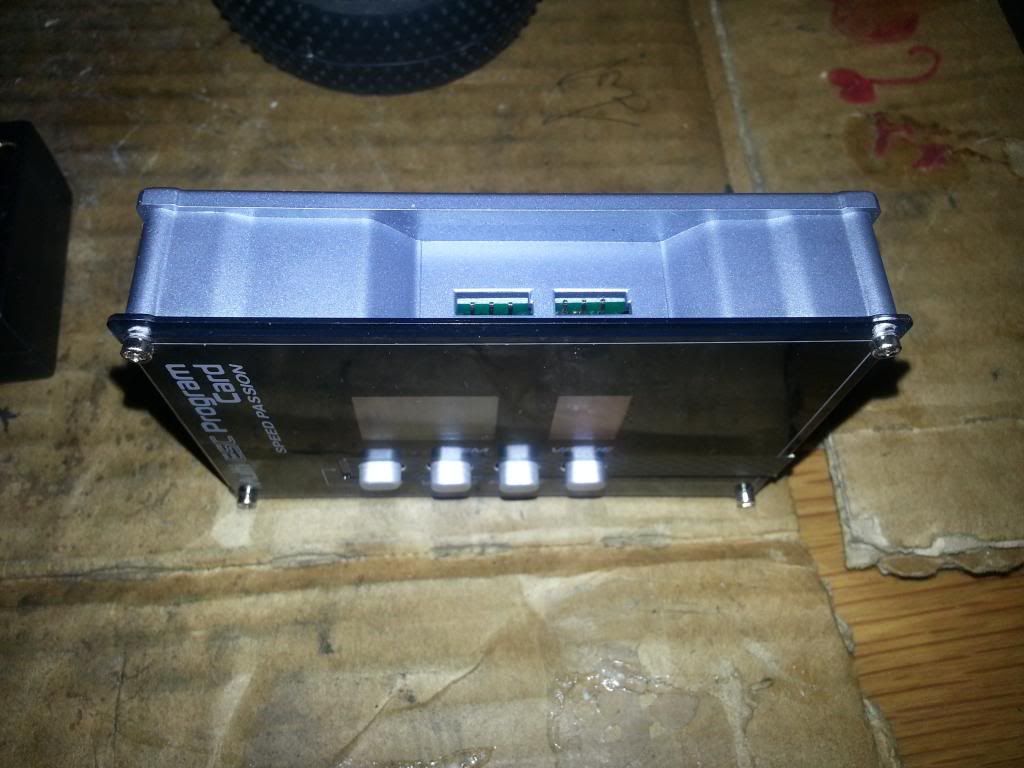

Hi i have got myself a speed passion esc and it came with a program card but no instructions.so been on web sites ect but only show plugging esc into a box with 1 port and shows which is the pos,neg and signal.on mine it has 2 ports and no +,- or signal to show which wire goes where. got the values ect but dont know which port and which way the wires go.
__________________
Current rides N slides and flies sponsored by

http://www.westernvalleymodels.co.uk/

  • TLR 22-4
  • TEAM C TM4
  • LOSI MINI 8 FULLY HOPPED UP
  • GT12 S1
  • HPI FIRE STORM
  • TRAXXAS KEN BLOCK GYMKANHA
  • Carisma Nissan Skyline GT
  • DJI P3
  • FIRDBIRD STRATOS
Reply With Quote
  #2
Old 14-03-2013
RudolfXC RudolfXC is offline
Senior Member

Join Date: Jun 2011
Location: Lancashire
Posts: 539
Default

You unplug the speed control from the receiver and plug into the setting box.

The signal (white) wire goes at the end with the small extra slot for the polarising part of the plug on genuine Futaba plugs.
__________________
Please leave feeback at

http://www.oople.com/forums/showthread.php?t=80777
Reply With Quote
  #3
Old 18-03-2013
zoaman's Avatar
zoaman zoaman is offline
Senior Member

Join Date: Mar 2012
Location: south wales
Posts: 499
Default

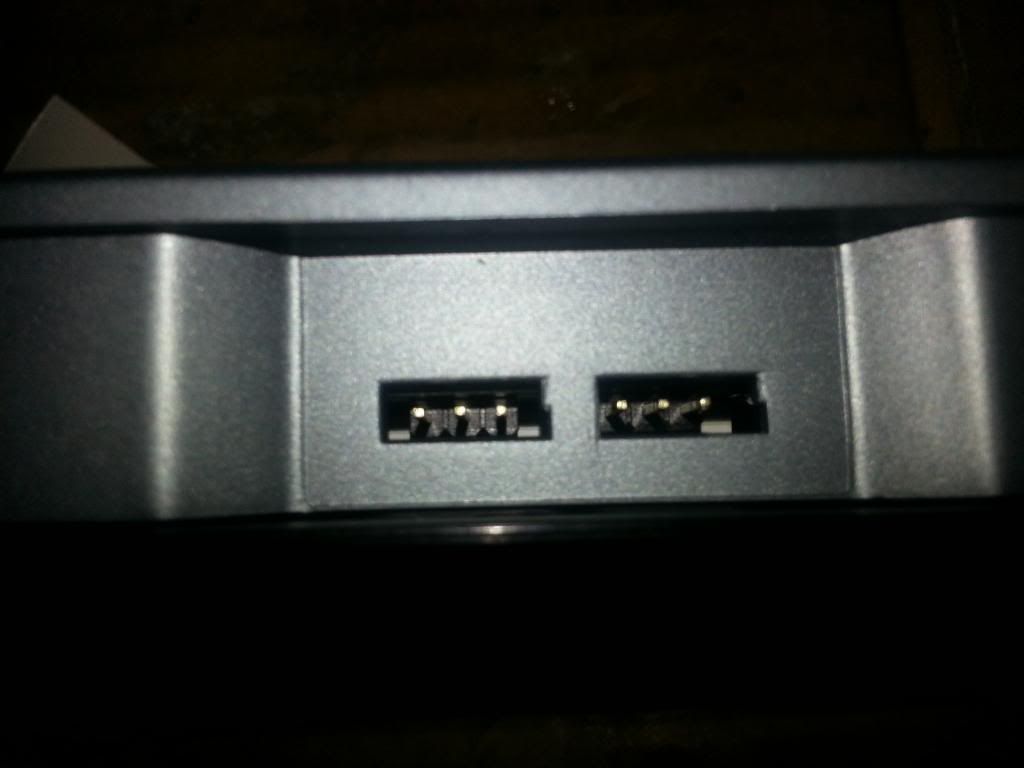

YES THATS OK IF YOU HAVE 1 PORT BUT MINE HAS 2 PORTS ON THE BOX.SO WHICH 1 IS WHICH
