NEAM race at seaham! (:


Tonight's racing was class!:) even though i got so stressed out and broke 2 hubs! a shock pin and a diff gear! Glad i have a spare's car!

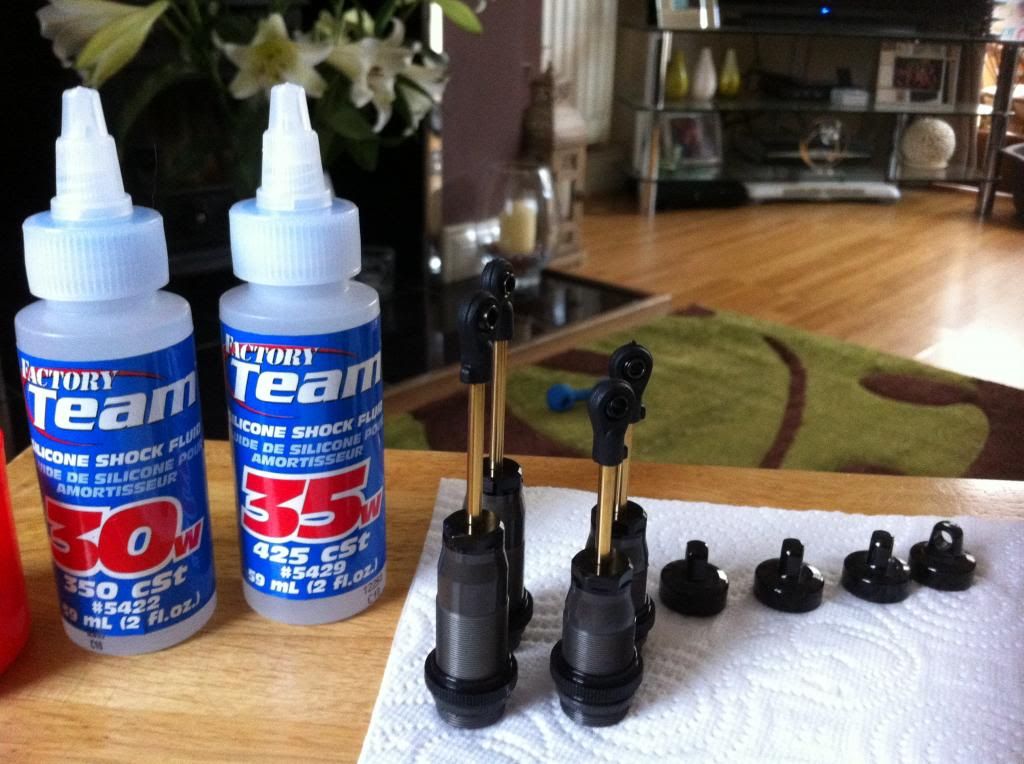

Been modding the car all week just little tweek's like 13 degree hub carriers, lowered 20mm rear 19mm front, 30w rear shock oil and 35w front shock oil!, what a big difference! the car fly's now!.

I've just finished rebuilding both front and rear diffs too! there perfect, very smooth and tight. i really dont know what was wrong last time it worked.

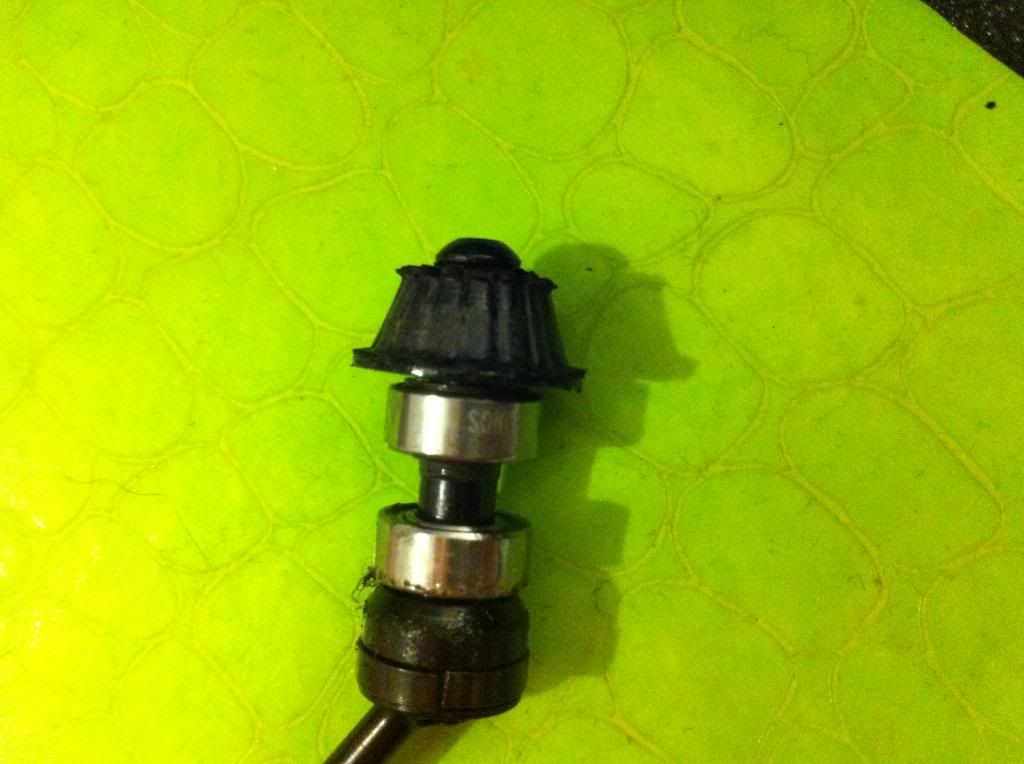

Here's a few pics of my car and broken part's, let me know what you think! cheer's!

Also thank's for everyone for help and advice again!

Declan

http://i1111.photobucket.com/albums/...n/IMG_1666.jpg
http://i1111.photobucket.com/albums/...n/IMG_1661.jpg
http://i1111.photobucket.com/albums/...n/IMG_1645.jpg
http://i1111.photobucket.com/albums/...n/IMG_1652.jpg
http://i1111.photobucket.com/albums/...n/IMG_1627.jpg
http://i1111.photobucket.com/albums/...n/IMG_1670.jpg

Alright declan, glad you enjoyed your 2nd night racing again, your buggy seemed to go pretty well round the track and looked good too............heres a link you might be interested in !!!

http://www.jemodels.com/electric-mod...oduct_id=12423

Stronger Kevlar diff gear set, will sort you out ;)

Also what turn motor are you using and did you manage to get your steering sorted out ?

Hello Declan

Have you looked at the manual to see how many shims you need to put on the outdrives and layshaft to take up play. Taking up the play will help to prolong the life of the diff gear. Worth a try!

keith

racing woooo


Hii :) I've been working on the car and i sorted both diff's at last! i shimmed both and replaced the gears, greased bearings and washers and now both diff's are smooth and tight! the diff's last time just wouldn't work properly!, I am going to buy Kevlar diffs but there's no stock :(.

I loved my first race but then after that i couldn't stop crashing and braking stuff! :( i think i try to fast to catch the fast people! i also painted that body the same as my spare buggy just different colour's :)

My motor is a 5.5t reedy and its crazy that's why its only running 50% punch-power.

My steering is annoying! its straight at the start of the race then after a lap I've got to keep correcting it to keep the thing straight!!

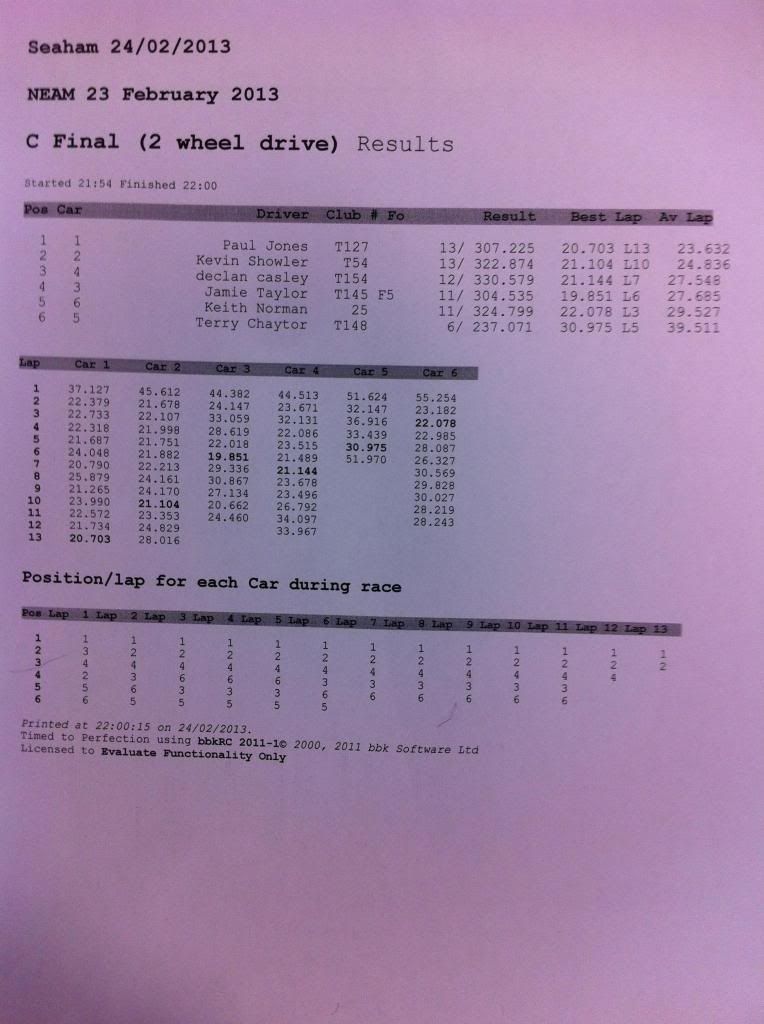

Results


Hope this helps

Hii, the servo is brand new :( it's been used twice its a Alturn USA Low Profile Digital Servo BB/MG (High Speed)??

And is there anyone i can talk to or websites for diff parts and ansmann bit's?.

Also my slippers set with a 3mm gap from the spring to adjuster just like the manual say's, i know they can be wrong but i don't know any other way to set the slipper :(

Declan

Mmm I'm not sure on that servo as I have never used one, maybe your horn could be slipping on the splines on the servo? Have you by mistake put the wrong horn on? A 25 spline horn on a 24 spline servo for example would kind of work but it would slip round. Just an idea?

Ansmann parts are abit tricky as they stopped bringing them into the uk but then another company took over so I assume they are still available but where I'm not sure?

Try SMD (spire model distribution) they bring Team C cars into the uk, I'm not sure of the politics of it all but Ansmann cars are rebadged Team C cars.so most parts should be compatible.

Here are the kyosho gears that I believe will fit

http://www.jemodels.com/electric-mod...tegory_id=1285

Generally what the manual tells you won't be a million miles away on the slipper clutch but obviously the is tolerance in the parts, track conditions differ and what motors are being used cannot all be covered, I should be there on Sunday, I run a kyosho lazer that is a similar car to what you have so I can tak a look for you, but most reasonably experienced racers should be able to help also

Yeah could you please have a look if you see me! :) thanks for the help!:) my servo is 25 splines i think and i have a 25 spline hot bodies metal servo horn on it :) i just fitted it but it seems wierd :(

Yeah will do,most people there should know me, ah if you have a metal horn it's probably not that then, I was just guessing without seeing it.

No bother, thanks for your advice :)

I was going to suggest the servo or steering mech is binding, perhaps not returning to centre when the car is under load / acceleration ?

everythings moving free? :(

Is this the servo you have declan ???

http://www.servoshop.co.uk/index.php...5MG&area=Servo

Yeah that's the servo! 25 splines?

25 splines is how many teeth it has for the servo horn
different manufacturers have different splines(teeth) so the servo horn that you use has to fit correctly

My servo has 25 spline's, the servo horn is a metal hot bodie's 25..

Here is a link to my servo horn and servo

http://www.modelsport.co.uk/hot-bodi...products/35151

http://www.modelsport.co.uk/alturn-u...roducts/359810

This is the right fitment yeah?

Yeah thats right, i wonder if it has a plastic gear inside which may have stripped some teeth that may need replacing........???

Its all metal gear's:( i dunno what to do, ill see someone at racing on sunday:)

Have you checked your servo saver is ok ???
